Big Tex 70TV
Tandem Axle Vanguard Trailer
Get more cargo space with the extra wide 70TV Tandem Axle Vanguard Trailer. An 83’’ wide trailer that’s equipped with higher, v-crimped steel sides for maximum strength, durability, and protection, the 70TV features reliable steel-belted radial tires that keep you on the road safely. It’s up to the task to haul lawn and garden equipment for heavy-duty landscaping jobs with its 7,000 lbs G.V.W.R. Built for the long haul, this rugged trailer is the perfect fit for professional landscapers and homeowners who put in long hours to look after their lawn and garden.
| Trailer Size | G.V.W.R Rating | Trailer Weight | Trailer Payload |
|---|---|---|---|
| 83" x 12' | 7,000# | 1,665# | 5,335# |
| 83" x 14' | 7,000# | 1,755# | 5,245# |
| 83" x 16' | 7,000# | 1,845# | 5,155# |
| 83" x 18' | 7,000# | 1,935# | 5,065# |
Key Features
VANGUARD SIDES
VERSATILE 4’ REAR RAMPGATE (OPTIONAL)
2,000 LBS SET BACK JACK
RADIAL TIRES
Equipment
BODY
Standard
Option
4" x 3" x 1/4" Angle Frame
3” x 2” x 3/16” Angle Crossmembers
Treated Pine Floor
Black Paint
9" x 72" Rolled Formed w/ Back Fenders
29-3/8" Tall Sides w/ 24" V-Crimped Steel Panels (16 Ga.)
2" x 2" Square Tubing Top Rail
Blackwood Pro Rubber Infused Lumber Floor (per linear foot)
1/8” Diamond Plate Steel Floor (Per Square Foot)
CARGO CONTROL
Standard
Option
(4) Tie Down Loops Inside Bed
(4) Stake Pockets on Outside Frame
Bolt-On Landscape Box for (24" x 24" x 81-1/2")
Additional Stake Pockets (Each)
Additional Tie Loops
TIRE/WHEEL
Standard
Option
ST205/75 R-15 Load Range C
Tire Upgrade (ST225/75R-15 LR-D)
5 Bolt
Spare Tire Mount
Spare Tire (ST205/75R-15 LR-C)
Spare Tire (ST225/75R-15 LR-D)
POWER
Standard
Option
7-Way RV
Sealed, Modular Cold-Weather Wiring Harness
SAFETY
Standard
Option
1/4” Grd. 30 w/Safety Latch Hook (2 each)
Complete Break-A-Way System w/Charger
LIGHTS
Standard
Option
L.E.D. D.O.T. Stop, Tail, Turn & Clearance
JACKS
Standard
Option
2,000# Top Wind, Set-Back Jack with Removable Sand Foot
2,000# Fold-Up Jack
8,000# Drop-Leg Jack
RAMPS
Standard
Option
4' Tall Rear Rampgate w/ Coil Spring Assist
5' Tall Rear Rampgate w/ Coil Spring Assist
4' Heavy Duty Integrated Ramp Gate w/ Coil Spring
AXLES
Standard
Option
2 - 3,500# Premium, Cambered Axles with Quick-Lubricating Hubs
Multi-Leaf Spring w/ Equalizer
BRAKES
Standard
Option
Electric Brake on Front Axle
Electric Brakes on 2nd Axle
COUPLERS
Standard
Option
Adjustable, 7,000#, 2” Forged Coupler
2-5/16" Stamped Coupler
2-5/16" Forged Coupler
360° view

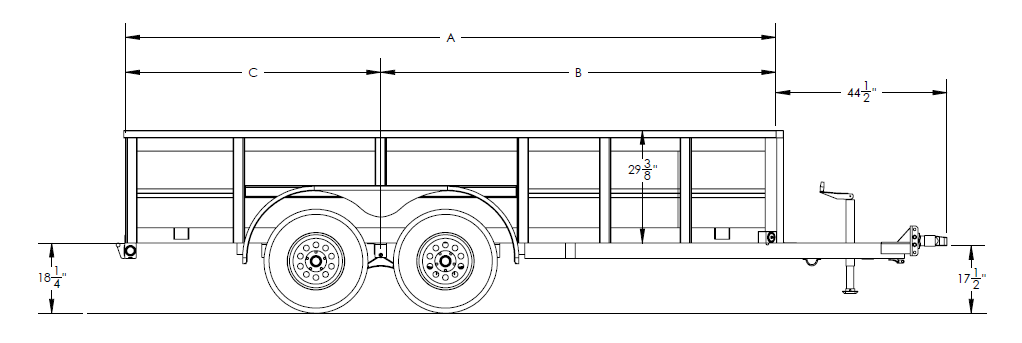

Measurements
