Big Tex 10CH

Pro Series Tandem Axle Car Hauler

More capacity. More strength. If that’s what you need for your car hauling needs, then the 10CH Pro Series Tandem Axle Car Hauler is your trailer. With a 9,990 lbs G.V.W.R., the 10CH hauls everything from cars and tractors to light- and medium-duty equipment—a professional-grade hauler that’s constructed to tackle tough tasks. Featuring a fabricated front stop rail, easy load angle, and premium axle, this is a heavy-duty car hauler purpose-built for safely and securely transporting vehicles and equipment.

Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
83" x 18' 9,990# 2,125# 7,865#
83" x 20' 9,990# 2,280# 7,710#

Key Features

8,000 LBS SET BACK JACK

OPTIONAL DOVETAIL AVAILABLE

RAMP READY

EFFORTLESS MAINTENANCE

Equipment

BODY
Standard
Option
6” x 3.5” x 5/16" Angle (1/4" on 16') Frame
3” x 2” x 3/16” Angle Crossmembers
Treated Pine Floor
Black Paint
Blackwood Pro Rubber Infused Lumber Floor (per linear foot)
1/8” Diamond Plate Steel Floor (Per Square Foot)
Dovetail (within Existing Length)
CARGO CONTROL
Standard
Option
Stake Pockets Along Both Sides (Quantity Varies by Length)
TIRE/WHEEL
Standard
Option
ST225/75R-15 Load Range D
6 Bolt
Spare Tire Mount
Spare Tire (ST225/75 R-15 LR-D)
POWER
Standard
Option
7-Way RV
Sealed, Modular Cold-Weather Wiring Harness
SAFETY
Standard
Option
1/4” Grd. 70 w/Safety Latch Hook (2 each)
Complete Breakaway System w/ Zip Breakaway Cable
LIGHTS
Standard
Option
L.E.D. D.O.T. Stop, Tail, Turn & Clearance
JACKS
Standard
Option
8,000# Top Wind, Set-Back Jack
RAMPS
Standard
Option
Side Slide In Ramps
5’ Stand Up Ramps
AXLES
Standard
Option
2 - 5,200# Premium, Cambered Axles with Quick-Lubricating Hubs
Multi-Leaf Spring w/ Equalizer
BRAKES
Standard
Option
Forward Self-Adjusting Electric Brakes on All Hubs
COUPLERS
Standard
Option
Adjustable, Forged 2-5/16" Coupler in Channel
2-5/16” Stamped Coupler
Adjustable Pintle in Channel

360° view

Not available for this model.

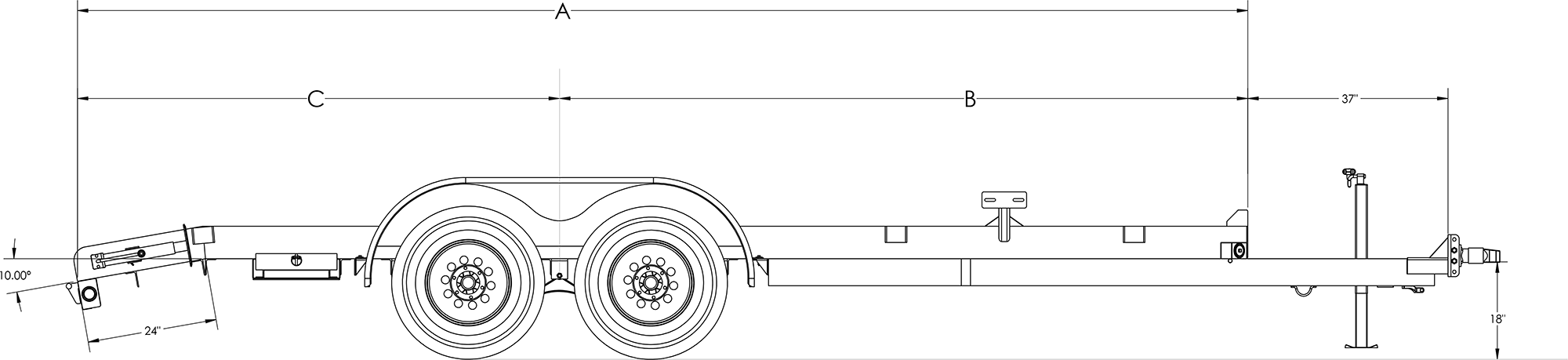

Measurements
