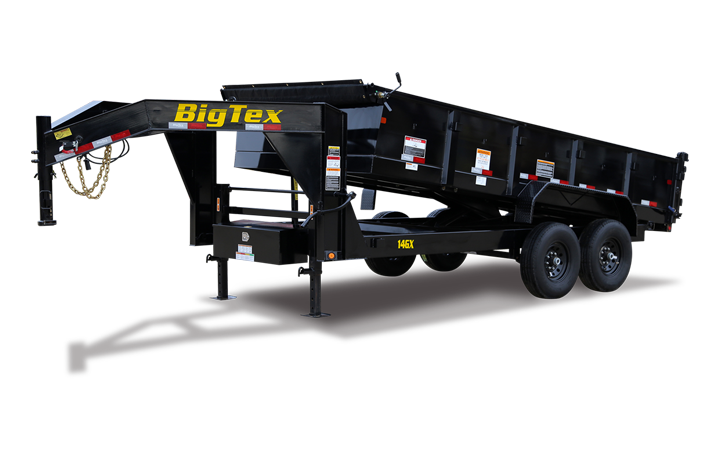

Big Tex 14GX
Heavy Duty Tandem Axle Extra Wide Gooseneck Dump Trailer
For the ultimate in strength and durability, look to the 14GX Heavy Duty Tandem Axle Extra Wide Gooseneck Dump Trailer—from its robust and long-lasting structure and frame to heavy-duty dump box with 10-Gauge steel floors. Packed to the brim with the most complete box unit in the industry, the 14GX is designed to handle heavy-duty and extra wide loads with superior stability and efficiency.
| Trailer Size | G.V.W.R Rating | Trailer Weight | Trailer Payload |
|---|---|---|---|
| 83" x 14' | 15,900# | 4,640# | 11,260# |
| 83" x 16' | 15,900# | 5,000# | 10,900# |
Key Features
ADAPTABLE DUMPING AND LOADING/UNLOADING
EQUIPMENT READY
MORE ACCESSIBLE
HEAVY DUTY DIAMOND PLATE STEEL FENDERS
EFFORTLESS MAINTENANCE
Equipment
BODY
Standard
Option
8" I-Beam Frame and Tongue (10#)
3" Channel on 16" Centers
10 Gauge Smooth Steel Floor
9” x 72” 14 Ga. Diamond Plate Double Square Broke
Stake Pockets Along Both Sides (Quantity Varies by Length)
Rear Combo Gate (Barn Doors & Spreader Gate)
3"x 2" Square Tubing
24" Tall, 10 Gauge Sides
Professional Finish w/ Primer Standard
Black Paint
Convenient Side-Step to Access Top Rail
24" Expanded Metal Side Extensions
3' Solid Sheet Metal Sides
4' Solid Sheet Metal Sides
Removable Deck on the Neck- Bolt On (8'W x 6'L)
CARGO CONTROL
Standard
Option
Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders
(4) 1/2" D-Rings Inside Bed to Secure Equipment
Lockable Pump and Battery Box Mounted in Front of Bed
J-Hooks Along Sides and Rear for Cargo Control
6.5' Slide in Ramp Package
TIRE/WHEEL
Standard
Option
ST235/80 R-16 Load Range-E Radial Tires
ST235/80 R-16 Load Range-G Radial Tires
Side Spare Tire Mount
8-Lug
Black Mod Steel
Spare Tire & Wheel (ST235/80 R-16 LR-E)
Spare Tire & Wheel (ST235/80 R-16 LR-G)
POWER
Standard
Option
Power Up/Power Down & Gravity Down Hydraulic Pump
Self-Contained Scissor
7-Way RV
Sealed, Modular Cold-Weather Wiring Harness
12V Deep Cycle
5A 110V on Board Battery Charger
Wireless Remote
5 Watt Solar Charger
SAFETY
Standard
Option
1/4" Grade 70 w/ Safety Latch Hook (2 ea)
Complete Breakaway System w/ Zip Breakaway Cable
LIGHTS
Standard
Option
L.E.D. D.O.T. Stop, Tail, Turn & Clearance
JACKS
Standard
Option
Dual 12,000# Drop-Leg Jacks (Side Wind)
Dual 2-Speed Landing Gear
AXLES
Standard
Option
2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs
Multi-Leaf Spring w/ Equalizer
Drop Axles (Lowers Deck Height to 24" from Ground)
BRAKES
Standard
Option
Forward Self-Adjusting Electric Brakes on All Hubs
COUPLERS
Standard
Option
Round Adjustable Pin 2-5/16" Gooseneck Coupler (25K)
360° view

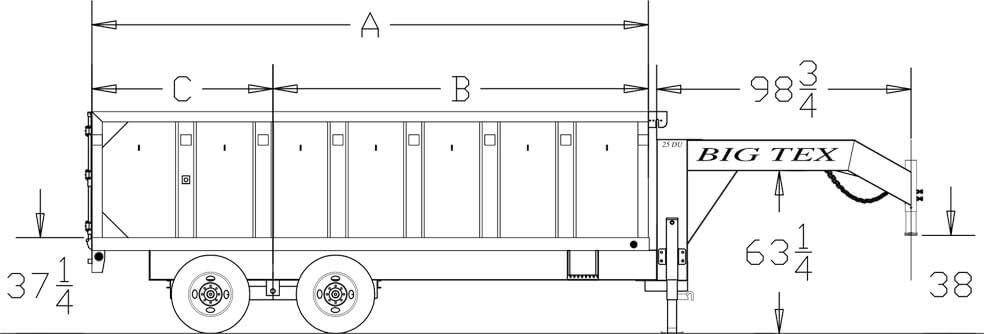

Measurements
