Big Tex 14OT

Heavy Duty Over-the-Axle Tilt Bed Equipment

The 14OT heavy-duty over-the-axle tilt trailer is designed with a scissor-style hydraulic hoist, providing more load stability and energy efficiency than single-ram systems and less maintenance and upkeep than dual-ram systems. Optimized for low-profile equipment, the 14OT has a knife-edge at the rear of the bed to provide a smooth transition while loading and unloading.

Trailer Size G.V.W.R Rating Trailer Weight Trailer Payload
102" x 22' 14,000# 4,745# 9,255#
102" x 24' 14,000# 4,970# 9,050#
102" x 26' 14,000# 5,290# 8,710#
102" x 22' GN 14,000# 4,970# 9,030#
102" x 24' GN 14,000# 5,175# 8,825#
102" x 26' GN 14,000# 5,155# 8,845#

Key Features

REAR KNIFE EDGE WITH COLLAPSIBLE BUMPER

EFFORTLESS MAINTENANCE

HYDRAULIC SCISSOR LIFT SYSTEM WITH POWER UP/POWER DOWN

FRONT MOUNT WINCH PLATE STANDARD

Equipment

BODY
Standard
Option
8" I-Beam, 10# / 13# on 26' Models
3" Channel Crossmembers
3/16" Fabricated Front Stop Rail
9” x 72” 14 Ga. Diamond Plate Double Square Broke w/Back (Removable) Fenders
102" Wide with 1/4" Diamond plate Knife Edge
Power Up/Power Down with Hydraulic System
16° Tilt Deck Angle
Treated Pine Floor
Black Paint
3/16" Fabricated Front Stop Rail
Blackwood Pro Rubber Infused Lumber Floor (per linear foot)
CARGO CONTROL
Standard
Option
Stake Pockets Along Both Sides (Quantity Varies by Length)
Rub Rail Along Both Sides
Extra 5/8" D-Rings
Recessed D-Ring in Floor (Steel Floor Only)
TIRE/WHEEL
Standard
Option
ST235/80 R-16 Load Range E Radial Tires
Tire Upgrade (ST235/80 R-16 LR-G)
8-Lug
Front Spare Tire Mount
Spare Tire & Wheel (ST235/80 R-16 LR-E)
Spare Tire Upgrade (ST235/80 R-16 LR-G)
POWER
Standard
Option
7-Way RV
Sealed, Modular Cold-Weather Wiring Harness
SAFETY
Standard
Option
3/8" Grade 70 w/ Safety Latch Hook (2 ea)
Complete Breakaway System w/ Zip Breakaway Cable
LIGHTS
Standard
Option
L.E.D. D.O.T. Stop, Tail, Turn & Clearance
JACKS
Standard
Option
12,000# Top Wind Drop Leg- BP
Dual 12,000# Drop Leg- Side Wind- GN
12,000# Elec/Hyd. Jack BY Stillwell™
Dual Elec/Hyd 12,000# Jacks by Stillwell™
AXLES
Standard
Option
2 - 7,000# Premium, with Quick-Lubricating Hubs
Multi-Leaf Slipper Spring w/ Equalizer
BRAKES
Standard
Option
Forward Self-Adjusting Electric Brakes on All Hubs
COUPLERS
Standard
Option
Adjustable 2-5/16" Demco EZ Latch Coupler
Adjustable Pintle in Channel in Lieu of Coupler

360° view

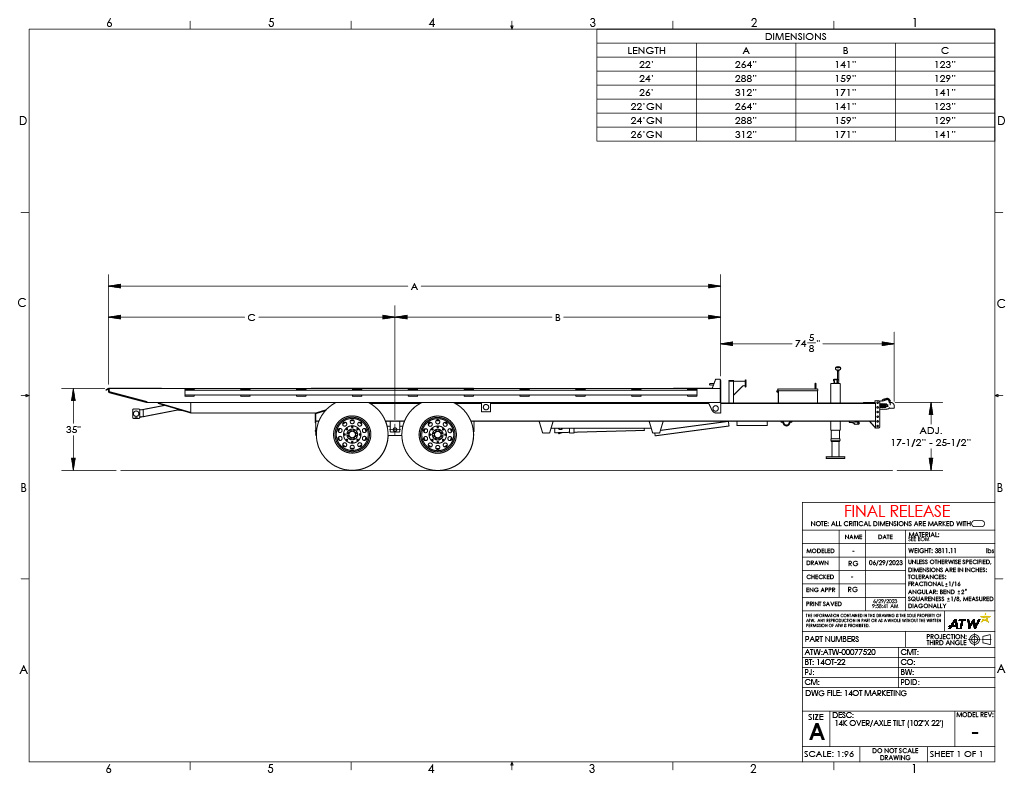

Measurements
