Big Tex 16GX
Super Duty Tandem Axle Gooseneck Dump
The 16GX Super Duty Tandem Axle Gooseneck Dump takes strength and durability to the next level. A heavy-weight hauler featuring a robust and long-lasting structure and frame, it’s built for heavy-duty hauling with 12,220 lbs of load capacity. And all that strength is matched together with a user-friendly experience; the 16GX is packed with a feature-rich dump box that makes loading, securing, and unloading easier than ever before. For professionals working in challenging working conditions, it’s a match made in heaven—a tough trailer made for tough jobs.
| Trailer Size | G.V.W.R Rating | Trailer Weight | Trailer Payload |
|---|---|---|---|
| 83" x 14' | 17,500# | 4,980# | 12,520# |
| 83" x 16' | 17,500# | 5,280# | 12,220# |
Key Features
HEAVY DUTY DIAMOND PLATE STEEL FENDERS
ADAPTABLE DUMPING AND LOADING/UNLOADING
EQUIPMENT READY
MORE ACCESSIBLE
EFFORTLESS MAINTENANCE
Equipment
BODY
Standard
Option
8" I-Beam Frame and 10" Neck (10#)
3" Channel on 16" Centers
7 Gauge Smooth Steel Floor
9” x 72” 14 Ga. Diamond Plate Double Square Broke
Stake Pockets Along Both Sides (Quantity Varies by Length)
Rear Combo Gate (Barn Doors & Spreader Gate)
3"x 2" Square Tubing
24" Tall, 10 Gauge Sides
Professional Finish w/ Primer Standard
Black Paint
Convenient Side-Step to Access Top Rail
3' Solid Sheet Metal Sides
4' Solid Sheet Metal Sides
Removable Deck on the Neck- Bolt On (8'W x 6'L)
CARGO CONTROL
Standard
Option
Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders
(4) 1/2" D-Rings Inside Bed to Secure Equipment
Lockable Pump and Battery Box Mounted in Front of Bed
J-Hooks Along Sides and Rear for Cargo Control
6.5' Slide in Ramp Package
TIRE/WHEEL
Standard
Option
ST215/75 R-17.5 Load Range-H Radial Tires
Side Spare Tire Mount
8-Lug
Black Mod Steel
Spare Tire & Wheel (ST215/75 R-17.5 LR-H)
POWER
Standard
Option
Power Up/Power Down & Gravity Down Hydraulic Pump
Self-Contained Scissor
7-Way RV
Sealed, Modular Cold-Weather Wiring Harness
12V Deep Cycle
5A 110V on Board Battery Charger
5 Watt Solar Charger
Wireless Remote
SAFETY
Standard
Option
1/4" Grade 70 w/ Safety Latch Hook (2 ea)
Complete Breakaway System w/ Zip Breakaway Cable
LIGHTS
Standard
Option
L.E.D. D.O.T. Stop, Tail, Turn & Clearance
JACKS
Standard
Option
Dual 12,000# Drop-Leg Jack (Side Wind)
Dual 2-Speed Landing Gear
AXLES
Standard
Option
2 - 8,000# Premium, Cambered Axles with Quick-Lubricating Hubs
Multi-Leaf Spring w/ Equalizer
Drop Axles (Lowers Deck Height to 24" from Ground)
BRAKES
Standard
Option
Forward Self-Adjusting Electric Brakes on All Hubs
COUPLERS
Standard
Option
Round Adjustable Pin 2-5/16" Gooseneck Coupler (25K)
360° view
Not available for this model.

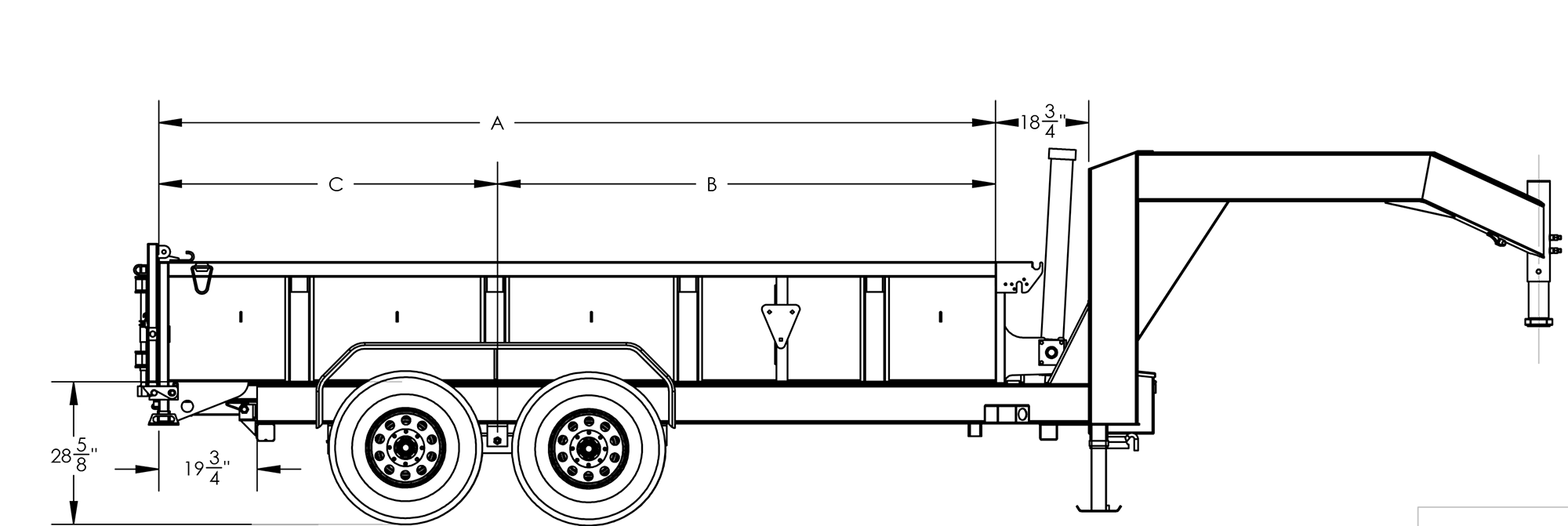

Measurements
