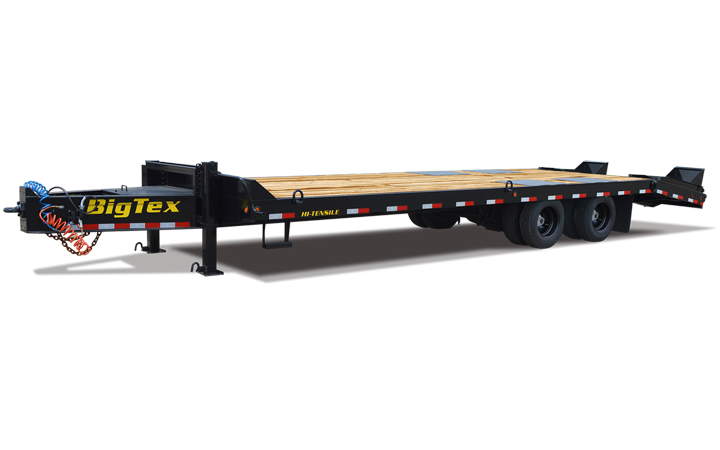

Big Tex 4XPH
Pintle Heavy Equipment Transport Trailer
The toughest jobs demand the toughest trailer. Built specifically to address the needs of heavy-duty equipment haulers around the world, the 4XPH Pintle Heavy Equipment Transport Trailer is designed from end-to-end for maximum strength, durability, and reliability against the toughest odds. Equipped with a 14″ I beam and junior I beam crossmembers, anti-skid braking system, and brakes and axles optimized for the heaviest loads, this heavy-duty pintle hitch trailer is a comprehensive solution for those transporting heavy machinery and construction equipment.
| Trailer Size | G.V.W.R Rating | Trailer Weight | Trailer Payload |
|---|---|---|---|
| 102" x 20'+5' | 48,000# | 8,950# | 39,050# |
| 102" x 24'+5' | 48,000# | 10,150# | 37,850# |
Key Features
ROBUST ADJUSTABLE PINTLE RING
ANTI-SKID BRAKING SYSTEM
HEAVY-DUTY ADJUSTABLE SUSPENSION
COMPREHENSIVE LOAD SECUREMENT
Equipment
BODY
Standard
Option
14" I-Beam
6" Jr. I Beam, 16" Centers
2" Nominal Oak
3/16" Fabricated Front Stop Rail
5' Cleated Dovetail
3/8” Heavy Duty Rub Rail on Both Sides
(2) Side Bed Steps
Black Paint
Wood Fill Dovetail & Ramps
CARGO CONTROL
Standard
Option
Storage Tray in Tongue
Stake Pockets Along Both Sides (Quantity Varies by Length)
(6) 1" D-Rings to Secure Equipment
Lockable Lid Over Tool Storage in Tongue
Extra 1" D-Rings
TIRE/WHEEL
Standard
Option
ST215/75 R-17.5 Load Range H Radial Tires
8-Lug
Spare Tire Mount
Spare Tire & Wheel (ST215/75 R-17.5 LR-H)
Vertical Spare Mount
POWER
Standard
Option
7-Way Semi-Style
Sealed, Modular Cold-Weather Wiring Harness
SAFETY
Standard
Option
1/2" Grade 80 w/ Safety Latch Hook (2 ea)
Complete Breakaway System w/ Zip Breakaway Cable
LIGHTS
Standard
Option
L.E.D. D.O.T. Stop, Tail, Turn & Clearance
JACKS
Standard
Option
12,000# Drop-Leg Jack (Top Wind)
Dual 2-Speed Landing Gear
RAMPS
Standard
Option
5’ Double Hinged Spring Assist Flip-Over Ramps, (Straight Deck Models do not Include Ramps)
AXLES
Standard
Option
2 - 22,500# Premium, Cambered Axles with Heavy-Duty Oil Bath
Heavy-Duty 44,000# w/ Automatic Slack Adjusters
BRAKES
Standard
Option
Air Brakes on Both Axles w/ Anti-Skid System on Front Axle
ABS on 2nd Axle
COUPLERS
Standard
Option
3" Pintle Ring w/ 3-Position Adjustment Plate
360° view

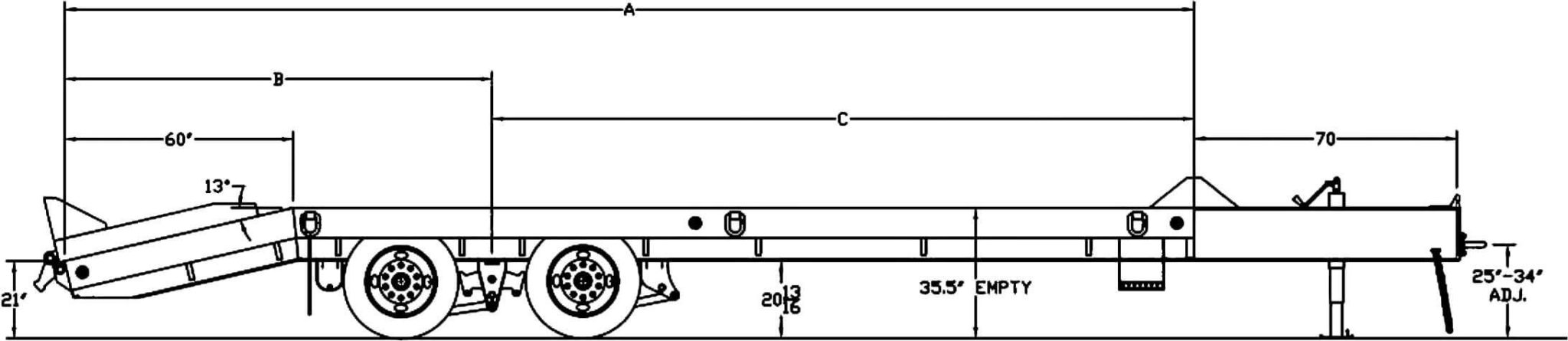

Measurements
